Linea-TW 14.4W

Linear LED

NEW

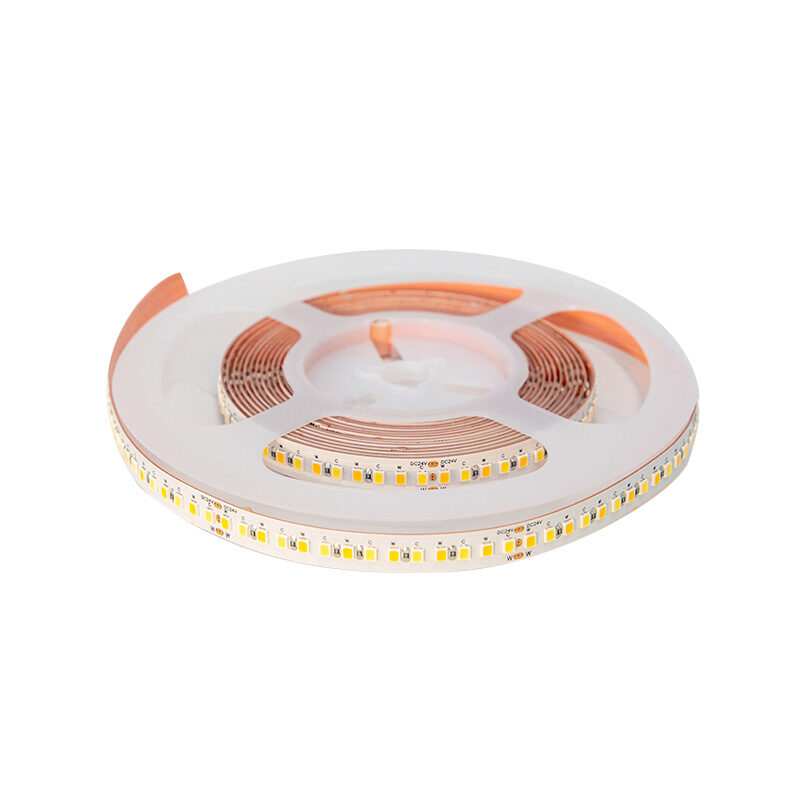

Tunable White LED Strip

  • Customisable colour temperature from 2700K-6500K
  • Safety input 24V DC
  • 196 LEDs/m

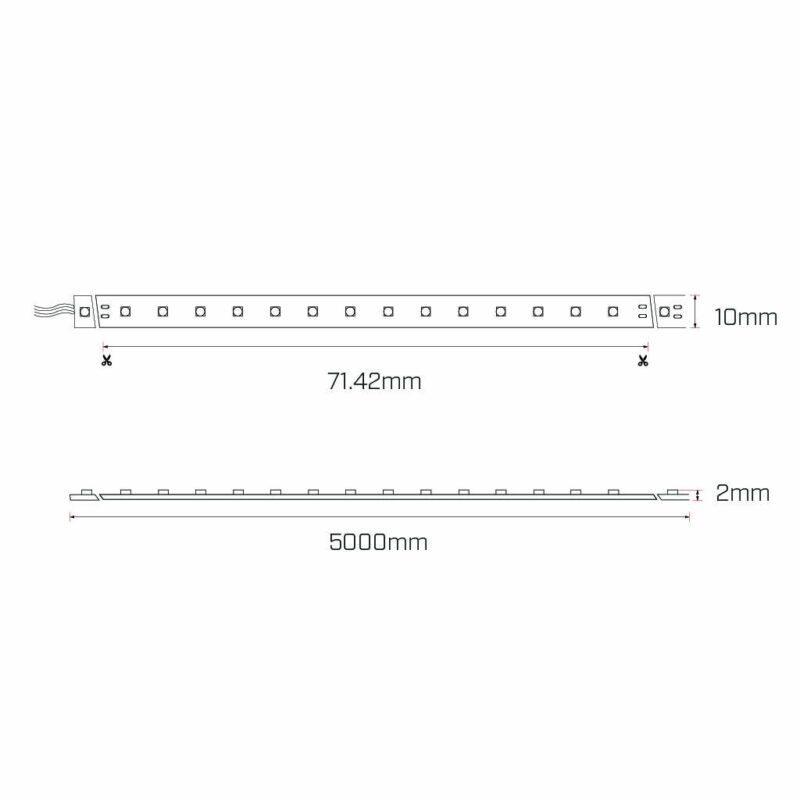

  • 10mm width, cuttable at 71.42mm
  • FPC copper thickness: 3OZ
  • Available as a 5m continuous run
  • If you require a customised version of this product, please  contact us

*Electrical and Photometric data shown are per metre

*Tested at 4000K

Product info

  • System Lumen Output1865lm
  • System Power14.4W
  • System Efficacy (max.)130lm/W
  • Input Voltage24V DC
  • Body/Trim ColourWhite
  • Installation MethodSurface Mounted
  • IP RatingIP43
  • Dimming TypeControl Based Dimming

Photometric info

  • Colour Rendering Index (CRI)CRI90
  • Colour Temperature (CCT)2700K-6500K
  • Beam Angle115°
  • Lumen Maintenance (L70)> 52, 000hrs (L70 B10)
  • MacAdam Step3 Step

Compliance and Features

  • RCM
  • CE
  • Ro HS
  • Class Iii Grey
