Wall lighting, now sorted

  • Innovative wall-washing solution providing a smooth distribution of light from ceiling to floor
  • Higher spatial flexibility with vertical tilt up to 60°
  • Available in 13W, 19W, 28W, 36W, 43W, 50W
  • Asymmetric beam angle of 90°x75°
  • Padua 900mA approved under VEU and IPART
1 - 2 weeks estimated lead time

For exact turnaround, please contact us.

Im01Im01Im02Im02

Specifications

Dr01Pd90

Product info

  • System Lumen Range850lm - 3700lm
  • System Power13W, 19W, 28W, 36W, 43W, 50W
  • System Efficacy Range65lm/W to 74lm/W
  • Input Voltage240V
  • Body/Trim ColourWhite, Black
  • Installation MethodAdjustable Recessed
  • IP RatingIP20
  • Dimming TypeNon-Dimmable
  • Maximum Tilt Angle60°
  • AccessoriesWithout Accessory
  • VEU/IPART ApprovedPadua 900mA (2900lm)/Padua 900mA (2900lm)
  • Custom Dimming TypeAvailable on request

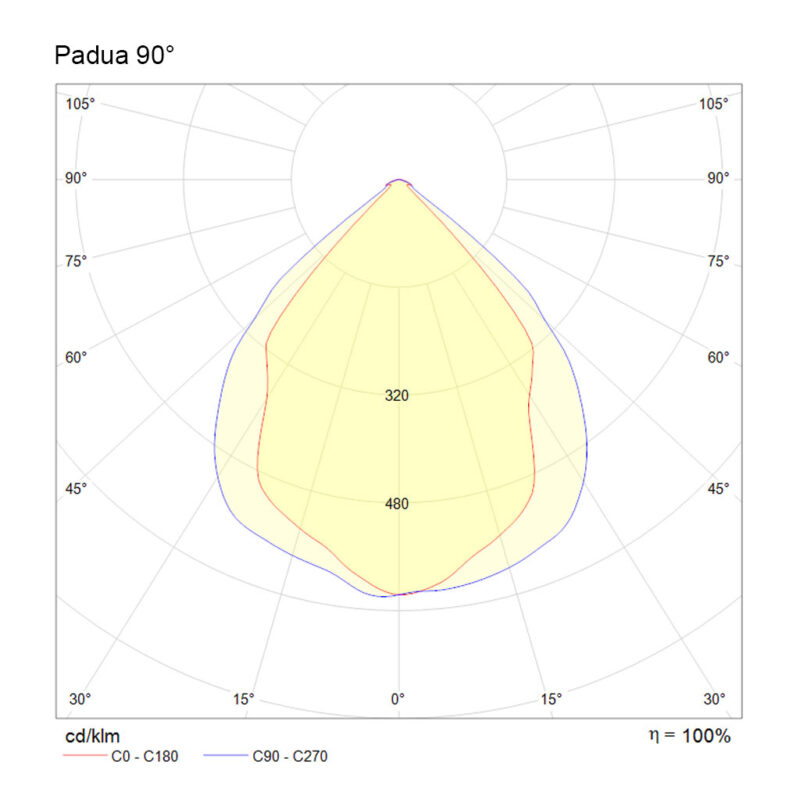

Photometric info

  • Colour Rendering Index (CRI)CRI90
  • Colour Temperature (CCT)3000K, 3000K Vivid, 3500K, 4000K
  • Beam Angle90°
  • Light Output Ratio (LOR)>85%
  • Custom Colour Temperature (CCT)Available on request
  • Revit FilesPlease choose Beam Angle / Power within the Revit file

Compliance

  • Ro Hs
  • Ce
  • Rcm
  • Veu Ipart Icon 82Px

Product Selection

There are two ways to add products to an enquiry form, or download a specific datasheet:

Specify Product: Make your selection from the dropdown options and click Enquire Now or Download Datasheet.

View Full List: Filter through the variations from the top. Download the datasheet by clicking the red icon or click + to add the product to your enquiry form.
